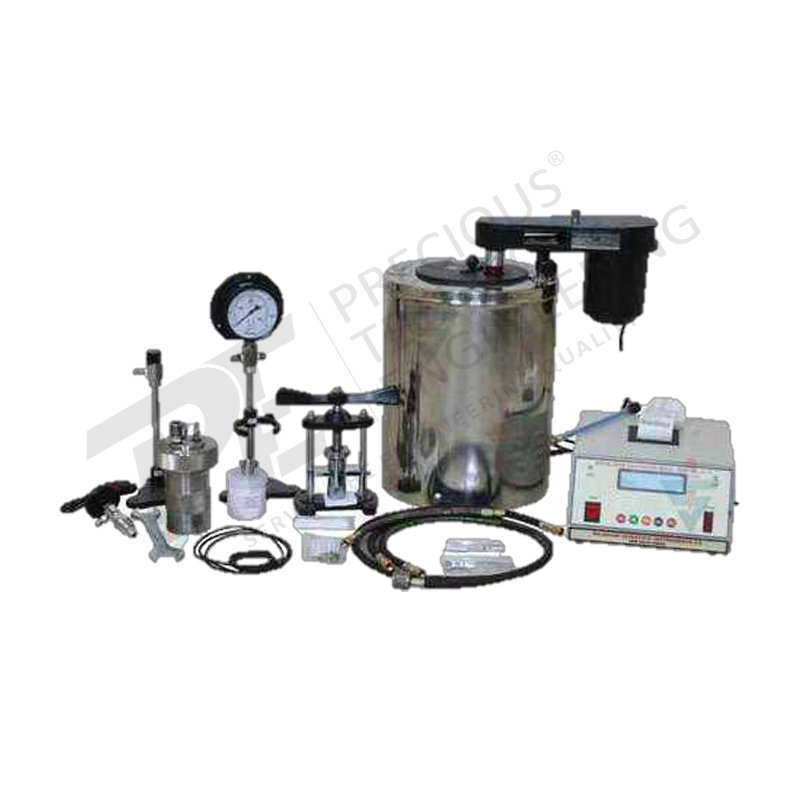

BOMB CALORIMETER PTE-328

KEY FEATURES

Bomb Vessel (Combustion Chamber):

• Strong stainless steel container to withstand high pressure
• Contains the sample, oxygen iniet, and electrodes for ignition

Calorimeter Bucket:

• Holds a known amount of water that absorbs the heat from combustion.

Stirrer:

• Ensures uniform temperature distribution in the water during the experiment

Thermometer or Temperature Sensor:

• Measures the temperature change accurately (PT-100 Sensor)

Ignition Circuit:

• Electric ignition wire used to initiate combustion of the sample.

Oxygen Filling System:

• Pressurizes the bomb with pure oxygen (usually 25-30 atm)

Parameter: Specification
Combustion Chamber Material : Stainless steel (SS 304)/(SS316)
Maximum Pressure: 40-50 am
Oxygen Filling Pressure: 25-30 atm
Water Jacket Volume: 2-3 liters
Temperature Accuracy: $0.001 C
Ignition Type: Electric ignition WIFE
Sample Size : 0.5-1 g typical
Calorific Value Range :Up to 10,000 kcal/kg
Display : Microprocessor-based
Power Supply :230 V AC, 50 Hz
