KEY FEATURES

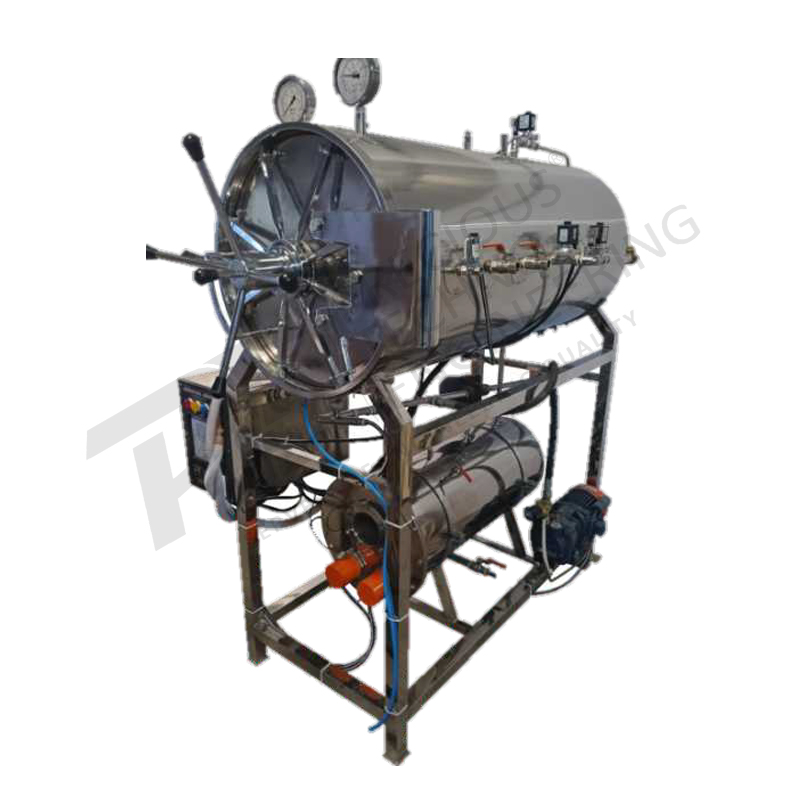

Triple-Walled Construction:
- Inner chamber, steam jacket, and outer shell made from high-grade stainless steel (SS-304/316).
- Ensures maximum thermal efficiency and uniform heat distribution.
- Quality welding (e.g., argon‐arc) and leak‐proof design are important for pressure integrity.
High Pressure & Temperature Operation:
- Designed to withstand sterilization pressure up to 30 psi (2.1 kg/cm²) or higher.
- Temperature range typically up to 134°C or more for effective sterilization.
- Hydraulic testing or pressure vessel certification (I,e., tested at 2.5× working pressure is a big plus for safety.
Advanced Safety Features:
- Equipped with pressure relief valve, safety valve, and pressure gauge.
- Automatic pressure cut-off and safety locking mechanism prevent door opening under pressure.
HMI/PLC Control System:
- Programmable sterilization cycles with timers and alarms.
- Control system: from analog , manual to digital/PID/PLC with touchscreen, data logging etc. Being able to pre-set cycles (e.g., 121 °C/20 min, 134 °C/8 min) matters for repeatability.
- Multiple safety layers (electrical protections like MCB, over-temp, over-pressure, alarms) are important.
Heating System:
- High-efficiency immersion heaters with automatic cut-off to maintain set temperature.
- Steam generated within the jacket or through external boiler connection.
- Loading trays/racks made of SS, moisture trap for condensate to avoid wet loads, drying capability for sterilized loads are desirable features especially in pharma/labs
Durable Door & Gasket Design:
- Heavy-duty radial locking mechanism with silicone gasket for leak-proof sealing.
- High-quality insulation minimizes heat loss and keeps the outer surface cool.
Compliance & Documentation:
- For applications in pharma/medical research you may need compliance with standards (e.g., ASME pressure vessel, HTM, FDA, GMP) and capability to validate cycles (e.g., temperature/pressure charting or digital logging.
- Validation ports, ability to integrate data logger, documentation for sterilization cycles (F0 values etc) may be required.
