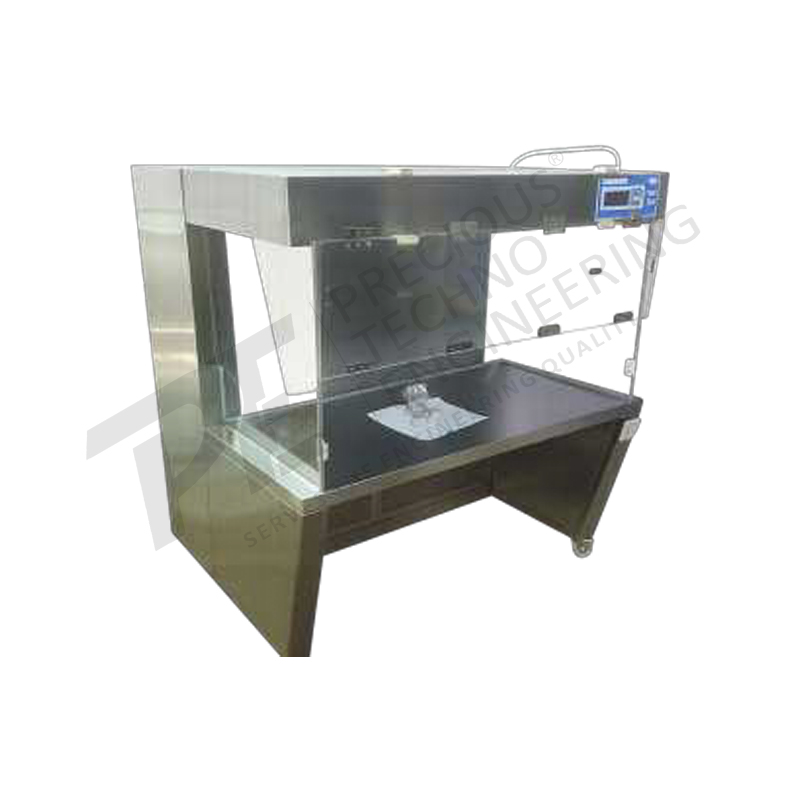

Laminar Air Flow (Horizontal)

KEY FEATURES

Construction

1. Made of powder-coated mild steel or stainless steel (SS 304/316).
2. Smooth, jointless working area to prevent bacterial growth.



Clean Air Environment

• Provides ISO Class 5 (Class 100) clean air to protect samples from contamination.
• Air flows horizontally from the HEPA filter (at rear) toward the operator.



High-Efficiency HEPA Filter

• Efficiency: 99.97% at 0.3 microns.
• Removes airborne particulates and microorganisms.



Pre-Filter Unit

• Washable synthetic pre-filter traps larger dust particles, extending HEPA filter life.



Air Flow Velocity

• Uniform air velocity typically between 0.3 – 0.45 m/s, ensuring consistent laminar flow.



Work Area Illumination

• Equipped with fluorescent light and optional UV germicidal lamp for sterilization.



Blower System

• Quiet, vibration-free, dynamically balanced motor-blower assembly.
• Energy efficient and low noise (<65 dB).



Front Door / Shutter

• Transparent Polycarbonate or Acrylic shield for visibility and protection.



Control Panel

• On/off switches for light, UV, and blower.
• Hour meter and airflow monitor (optional).



Safety Features

• UV interlock system to prevent UV exposure during operation.
• Airflow alarm for low-pressure indication (in advanced models).



Power Supply

• 230 V ±10%, 50 Hz, single-phase AC



Optional Features

• Magnehelic gauge for pressure monitoring.
• Castor wheels for easy mobility.
• DOP port for filter integrity testing.
