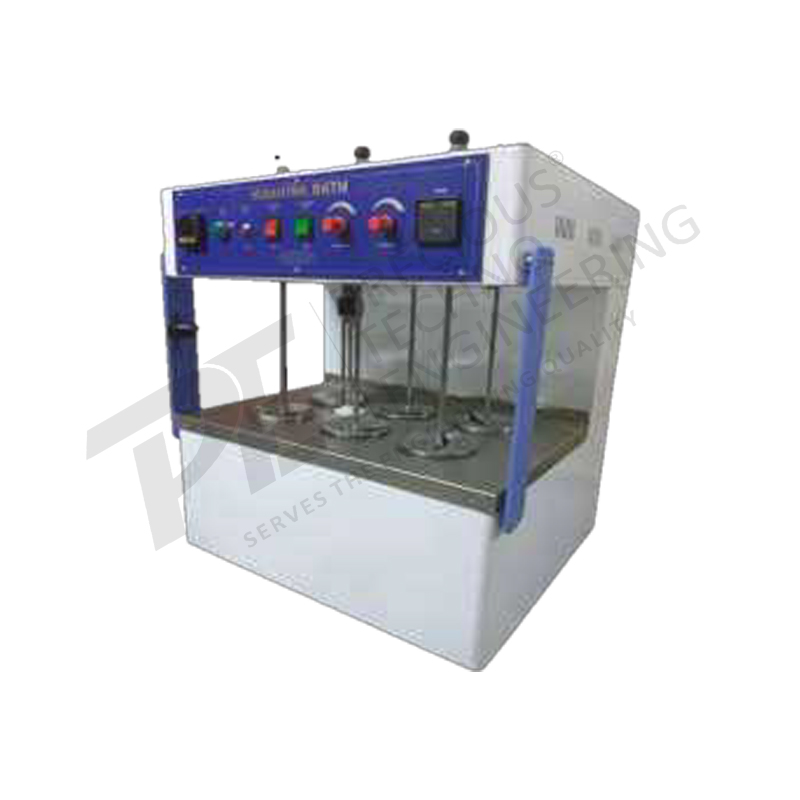

MASHING BATH

KEY FEATURE

ANALYSIS PROCEDURES Congress- and Hartong-Methods are standardized methods to the extraction of different analyses key figures.
CONGRESS-METHOD Mashing, by passing through a temperature program. Use of malt-fine grind and-coarse grind.
HARTONG-METHOD Mashing at constant temperature (20°, 45°, 65″ or 80° C). Use of malt-fine grind
CONSTRUCTION Rectangular constant temperature bath having inner reservoir made of thick gauge 304 AISI, Stainless steel buffed to mirror finish. External casing made of thick gauge CRCA sheet duly powder coated. The bath is provided with stainless steel lid with 4/6/8 ports, 4/6/8 stainless steel beakers supplied.
DRIVE MECHANISM A battery of 4/6/8 agitators are driven by a heavy duty Permanent Magnet DC geared motor With DC frequency drive. The stirring paddles are made out of stainless steel rods. The speed of agitator, which oscillates through drive knob and digitally indicated with Variable Speed 15-150 rpm (can be customize the RPM as per customer requirements). The drive assembly is mounted on a rigid stand just above the constant temperature bath with detachable stirring paddles.
STIRRER Heavy Duty PMDC motor stirrer for bath for uniform temperature of bath, Shaft made of Stainless steel 304
HEATING Stainless steel sheathed immersion heater made of Oxidized Nichrome wire fitted at the bottom of the bath to uniformly dissipate the heat across the bath area
CONTROL PANEL Comprise of Mains On/Off, Digital Microprocessor Based PID Temperature Controller, Digital Timer, Motor On/Off, Electronic Speed Controller And Rpm Indicator
Temperature Controller: Fully automatic microprocessor PID temperature controller with PT-100 sensor accurately controls the desired set temperature of the bath with +0.5°C accuracy. The controller is having two display for set and process value.
Digital Timer: Facilitates to preset the duration of the test run in hour/minutes. The drive system stops automatically after elapse of set time.
DC Frequency Drive: Continuously variable speed is adjustable by means of a knob by turning it clockwise /anticlockwise.
RPM Indicator: Digitally indicates the speed of the agitator.
